The Number on the Screen Could Save Your Rifle — and Your Hands

Marcus had been reloading for six years when he sat down to work up a new load for his .338 Edge. He'd built the rifle himself, knew its quirks, and trusted his process. He was using a slow-burning powder, incrementing charges carefully, and — this part is important — he was watching his brass.

After each firing he'd pull the bolt, hold the case up to the light, and check. Primers looked fine. No shiny ejector circle stamped into the case head. Extraction was smooth. Everything felt right. At 97 grains of powder he was still four grains below his planned maximum, and the rifle was shooting beautifully. He had one more test load ready to go: 101 grains.

What Marcus didn't know — couldn't know without the instrument sitting on the table behind him — was that his rifle was already running at or above the pressure level his manual associated with maximum charge. The brass wasn't telling him. The trigger pull wasn't telling him. The rifle was simply, silently, doing something dangerous behind a wall of unremarkable ejected cases.

He chronographed that 97-grain load almost as an afterthought. The screen read 2,869 feet per second. His ballistic software had predicted 2,735 fps at that charge weight. The gap was more than 130 fps.

Marcus did not fire the 101-grain load. He went home and read about pressure.

**What velocity actually measures**

To understand why that number mattered, you have to understand the relationship between pressure and speed. When a cartridge fires, expanding gas accelerates the bullet down the barrel. The faster the gas expands — that is, the higher the peak pressure — the faster the bullet exits the muzzle. Pressure and velocity are not perfectly interchangeable values, but they are deeply linked. As one community of experienced handloaders put it plainly: pressure is generally a function of velocity.

Manufacturers who produce reloading manuals don't just invent the velocity figures printed next to each charge weight. Those numbers come from instrumented test barrels, fired under controlled conditions, with specific lots of powder, specific primers, specific brass, and specific bullets. When the manual says a 168-grain bullet over 44.5 grains of a particular powder produces 2,650 fps, that figure was measured — and the pressure at that charge weight was measured too, against the ceiling set by the Sporting Arms and Ammunition Manufacturers' Institute. For 9mm Luger that ceiling is 35,000 psi. For .223 Remington it is 55,000 psi.

Those figures are the reference points your chronograph helps you navigate.

**Why your brass is lying to you**

The reloading community has long taught a checklist of visual pressure signs: a flattened primer that fills the primer pocket flush or beyond, a bright circle pressed into the case head by the ejector, cratering around the firing pin indent, brass that sticks on extraction and requires real effort to cycle. These signs exist, they're real, and they're worth learning.

But they are late-stage indicators at best, and unreliable ones at that. Some firearms show what look like pressure marks at entirely normal operating pressures — a slightly tight chamber, a generous ejector spring, a firing pin that fits loosely in its hole. Factory 9mm brass, for example, sometimes shows cosmetic impressions that would alarm a new reloader but mean nothing about actual pressure levels in a well-chambered handgun. On the other end of the problem, a rifle with a tight, well-supported chamber may show no signs at all while pressures climb into dangerous territory.

Marcus's .338 Edge was in that second category. Four loads deep into a pressure ladder, the brass looked pristine. The only honest report came from the chronograph.

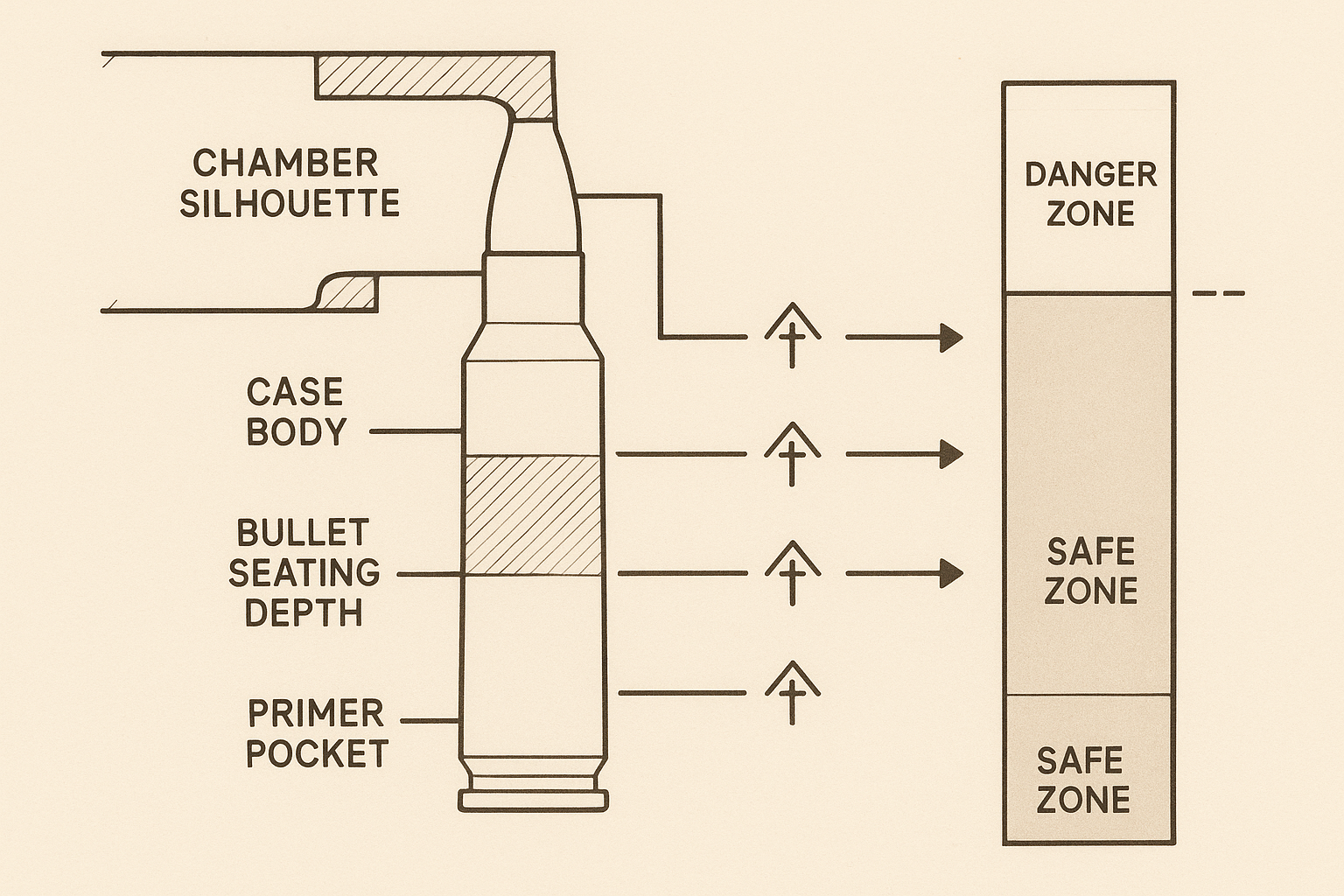

**The stacking problem**

Here is something that surprises many new handloaders: you can be within the published minimum-to-maximum charge range and still produce dangerous pressure.

Reloading manual data is developed with specific components in a specific firearm. Change one variable — say, you're using brass from a different manufacturer — and the internal case volume shifts slightly, which affects the powder density and burn rate. Change the primer to a magnum type and you get a hotter ignition. Use a bullet that seats a little deeper than the one in the manual's test. Shoot in a rifle with a tighter chamber than the test gun. Each of those changes might nudge pressure up by a small amount that, alone, would be within tolerance.

Stack two or three of those small changes together and the nudges add up. You are still loading within the printed charge weight window. You are still loading what the label says. And you may be over the pressure ceiling that window was designed to represent.

This is called component stacking, and it is one of the most common ways careful, conscientious reloaders end up in trouble. The brass won't tell you it happened. The chronograph will.

**Too light is not too safe**

Before we talk about working up a load safely, there's a counterintuitive hazard worth addressing for rifle reloaders especially: an undercharge is not a guaranteed free pass.

With very slow-burning powders in rifle cartridges, a charge that is too small can paradoxically generate a severe pressure spike. The powder begins burning but does not produce enough gas quickly enough to get the bullet moving at the right rate. The bullet hesitates in the bore while pressure continues to build behind it. The result can be a dramatic, dangerous spike — not a gentle puff and a squib. This is distinct from a true squib load, where the bullet stops in the barrel, but the underlying lesson is the same: a charge that feels light is not automatically a charge that is safe. Start at the manual minimum. Do not experiment below it.

**Safe first steps: working up a 9mm or .223 load**

If you are new to handloading and you're building your first loads for a high-pressure cartridge like 9mm or .223, the process is straightforward — but only if you take it seriously from the first round.

Begin by establishing a baseline. Before you fire a single handload, shoot a box of factory ammunition through the same firearm. Note how the gun feels in recoil. Note how easily the bolt or slide cycles. If you have a chronograph — and you should, for this exact purpose — record the velocity of those factory rounds. Pull the fired cases and look at the primers, the case heads, the ejector marks. Keep those cases in a labeled bag. That is your reference. Everything that follows gets compared to it.

When you sit down to load, use a current-edition manual and find the section for your exact bullet weight, powder, primer type, and brass headstamp if the manual specifies it. Start at the minimum listed charge weight. Not the middle. Not the maximum. The minimum. Load five rounds at that charge and five at each increment up the ladder, stopping well before maximum.

Set up your chronograph for the range session. Shoot the ladder from the minimum charge up, recording every velocity. Compare each reading against the manual's published velocity for that charge weight. You are looking for the relationship between those two numbers to stay reasonably consistent as you climb. If your actual velocity is tracking close to the predicted velocity at each step — a little higher or lower depending on your barrel length and components — that is a normal, healthy ladder.

If, at some point in the ladder, your actual velocity jumps significantly above the manual's predicted velocity for that charge weight — if you are running 80, 100, or more feet per second hotter than the book says you should be — that is your signal to stop. The community heuristic around 100 fps over the manual's maximum published velocity as a threshold to stop is exactly that: a heuristic, not a published standard from SAAMI or any manufacturer. But the principle behind it is sound. An unexpected velocity excess means something in your system is generating more pressure than the manual's test conditions predicted. That something may be invisible on your brass. It is not invisible on your chronograph screen.

**The instrument that makes 'working up a load' mean something**

A chronograph doesn't replace the reloading manual. It doesn't replace starting low, incrementing carefully, using quality components, and checking your work. What it does is convert all of that careful process from an anecdote — 'felt fine, brass looked good' — into something you can actually evaluate.

Without velocity data, a load ladder is a series of shots that either produced problems you could see or didn't. With velocity data, it is a record of how your specific rifle, with your specific components, on that specific day, responded to each charge weight. That record can tell you when your system is behaving as expected and, more critically, when it is not.

Marcus's rifle gave him no visual warning. It gave him a number. He knew what the number meant because he had something to compare it to. He put the 101-grain test load back in the box and went home with his hands intact.

That is what a chronograph is for.
