The Brass Lied to Him

Marcus had been reloading for three years when he set up his .338 Edge for a ladder test. He was meticulous. He trimmed every case to the same length, used a single lot of primer, and weighed every charge on a beam scale he'd zeroed twice. He'd read the forum threads about pressure signs — the flattened primers, the stiff bolt lift, the shiny ejector circle pressed into the case head — and he felt prepared to recognize danger.

At 97 grains of a slow-burning powder, everything looked fine. The primers seated flush and came out with their original radius intact. Bolt lift was smooth. The brass dropped cleanly from the chamber. His notes from that session read: *No pressure signs. Beautiful brass.*

But he was also running a chronograph. And the chronograph said something different.

Published data for that charge weight predicted a velocity around 2,735 feet per second. His rifle — with a long, tight barrel — was delivering 2,869 fps. That's 134 fps hotter than the book. The brass had told him nothing was wrong. The numbers told him something was very much worth stopping for.

He stopped the ladder at 100 grains instead of continuing to his planned 101-grain maximum. He never loaded that top charge. He didn't know exactly how much pressure he'd been running, because no home reloader does — the actual gold standard for peak chamber pressure is a piezoelectric pressure barrel, a specialized piece of equipment found in ballistic laboratories, not garages. But the velocity curve told him he'd been running above prediction at every charge weight, which meant his true pressure ceiling was lower than the published maximum implied. Going further would have been flying blind into territory the manual had never mapped for his specific rifle.

This is the lesson that a chronograph teaches, and it's one the brass will never teach you in time.

**Why Pressure Signs Are a Late-Stage Warning**

The visible indicators that reloaders learn to watch — flattened primers, ejector swipe marks, case head expansion, sticky extraction — are real phenomena. They do occur under elevated pressure. But experienced handloaders have documented again and again that they are unreliable as early warnings, and the brief can appear only after pressure has already exceeded safe levels.

Think of them less like a smoke detector and more like a fire. By the time the smoke is thick enough to see, something is already burning.

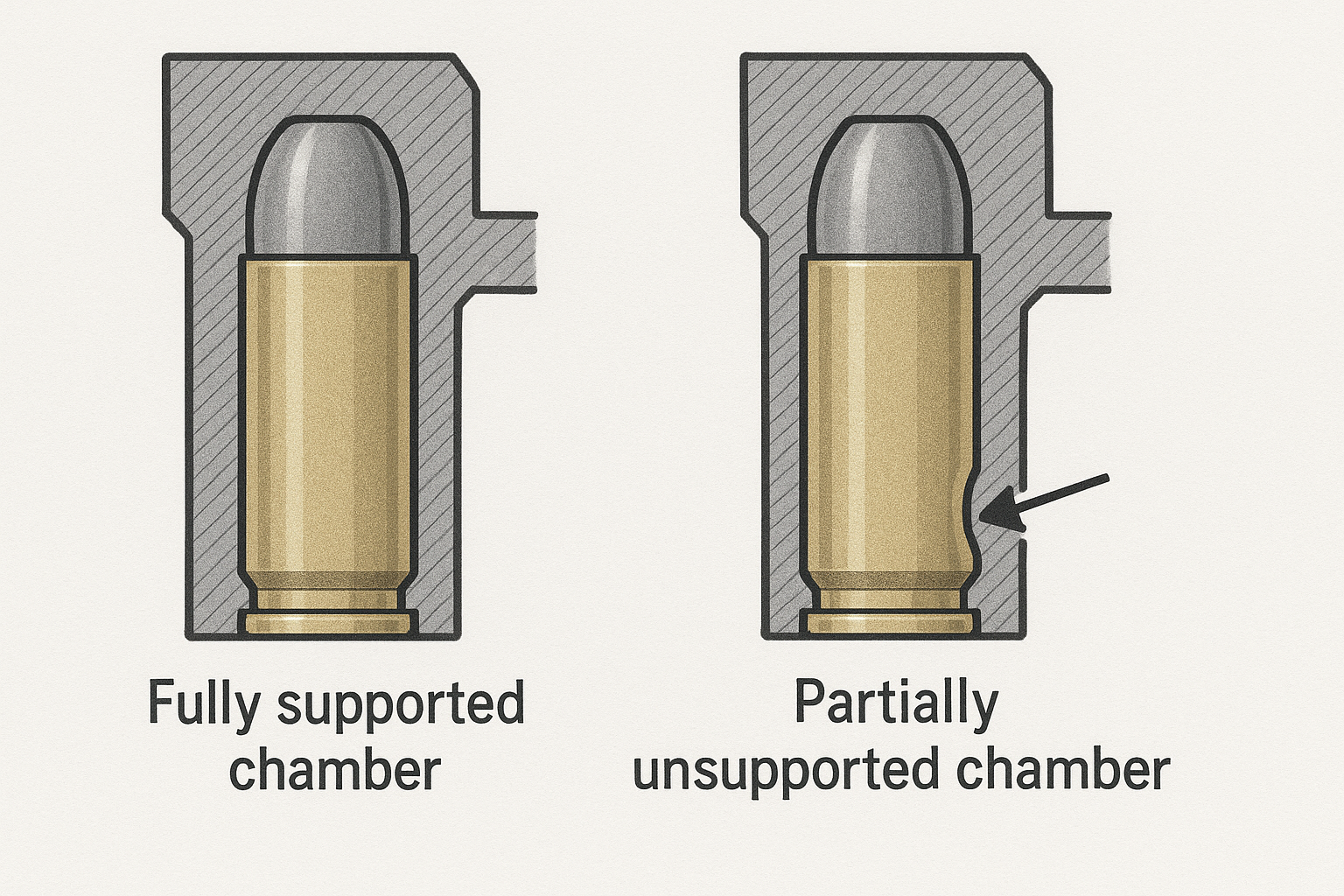

There's a structural reason this is especially true for 9mm, which is where many new reloaders start because the components are affordable and the brass is everywhere. The 9mm Luger chamber — particularly in many common semi-automatic pistol designs — leaves a portion of the case head unsupported. This geometry causes the brass to bulge slightly toward the unsupported area under even normal operating pressure. To a new reloader comparing factory-fired 9mm brass to the illustrations in a manual, that bulge can look alarming. To an experienced reloader, it's Tuesday. The result is that the visual vocabulary of 9mm pressure signs is corrupted from the start: the brass that looks pressured may be fine, and the brass that looks fine may not be.

SAAMI sets the maximum average pressure for standard 9mm Luger at 35,000 psi and for 9mm +P at 38,500 psi. That gap — roughly 3,500 psi — is not large. A combination of variables that individually seem minor can stack across it without producing any single dramatic visual cue. A different primer brand here, a different case manufacturer there, a bullet seated ten-thousandths of an inch deeper than spec — each change shifts the pressure curve. Mix those variables together in a single session without changing the powder charge, and you've effectively run a different experiment than the one in the manual, with no new data to guide you.

This is why the foundational step before any load development session — including one for factory-equivalent charges — is establishing a baseline with factory ammunition. Shoot a box of factory loads through the same gun you'll be testing handloads in. Record the velocity. Note what the primers look like, how the bolt lifts, how the cases land on the ground. That baseline is your reference. When your handloads start diverging from it, you have context to interpret what you're seeing.

**What the Chronograph Actually Measures**

A chronograph doesn't measure pressure. It measures velocity. But pressure and velocity are bound together: higher pressure drives the bullet faster. If your velocity is running significantly above the published data for a given charge weight, pressure is very likely running proportionally high — even if the brass looks pristine.

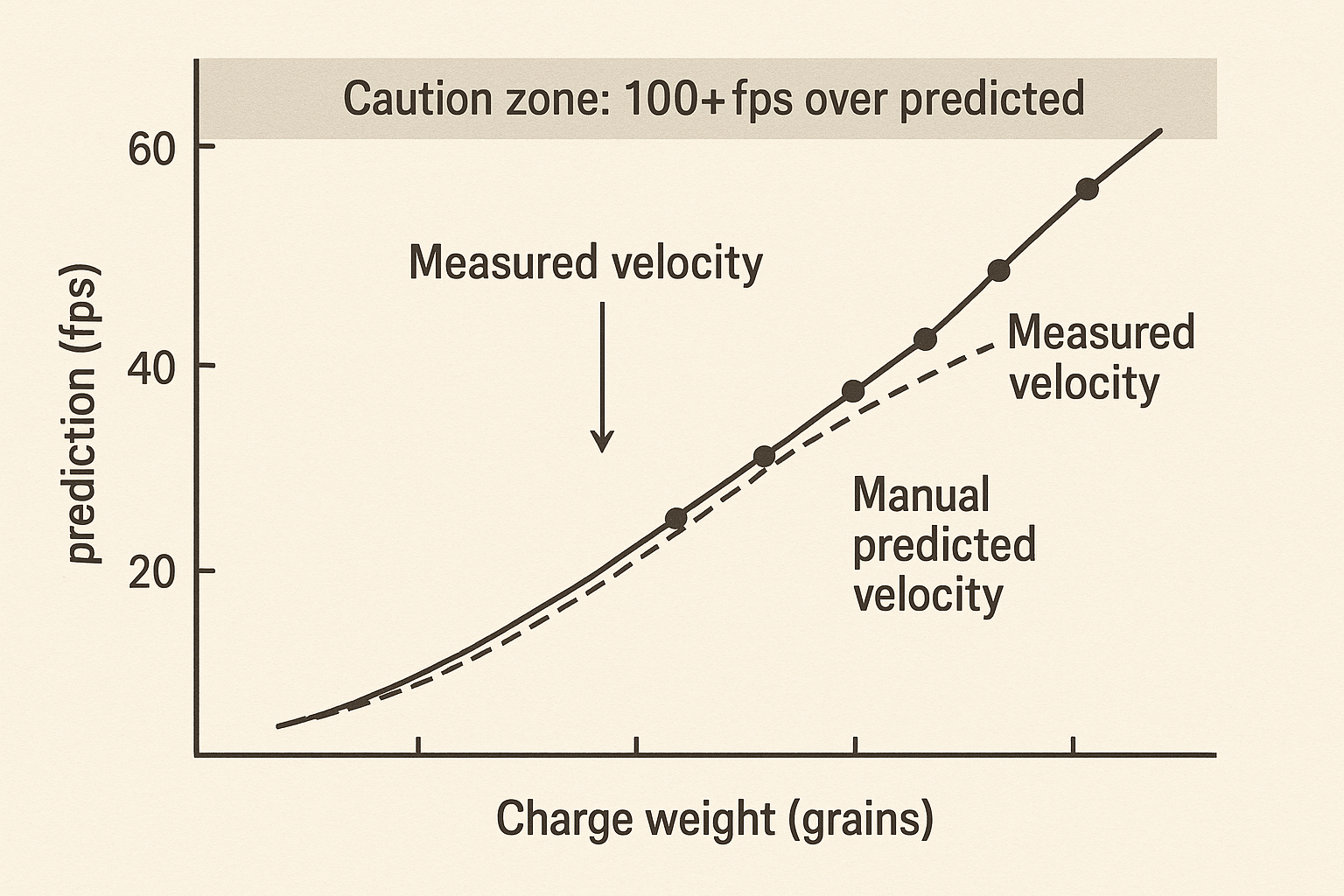

The practical rule of thumb that experienced handloaders use is this: if your chronographed velocity exceeds the manual's published maximum velocity for a given charge weight by 100 feet per second or more, treat that load as potentially over-pressure and stop. This is not a SAAMI specification or an ANSI standard. It's a community-developed caution threshold based on accumulated experience. But it is directionally sound, and it's calibrated conservatively enough to catch problems before the brass starts sending distress signals.

Equally important is extreme spread — the difference between your fastest and slowest velocity in a given string. A sudden tightening of extreme spread as you increase charge weight can indicate you've found a pressure node where the powder is burning very efficiently. That's useful data for accuracy work. It is not a safety free pass. A tight node at high velocity is still high velocity.

**Safe First Steps at the Bench**

Whether you're working up a 9mm load for a carry pistol or developing .223 Remington handloads for a precision rifle, the protocol is the same. Start at the published minimum charge weight — not the middle of the range, not a charge you've heard works well for someone else's rifle. The minimum. Then work up incrementally, chronographing every step.

Compare your recorded velocity to the manual's listed velocity for that specific charge weight, using the same bullet weight and style, the same primer type, and the same case brand if possible. If your velocity is consistently running above the manual's prediction, pause and diagnose before adding more powder. The question to ask is not *do the cases look okay?* The question is *why is my rifle running faster than the data says it should?*

Never mix brass headstamps during a pressure development session. Different manufacturers produce brass with different case wall thicknesses and internal volumes. A charge that fills a Starline case to 95% of capacity may fill a thinner-walled case from another maker to 98%. That difference matters. Reserve your mixed-headstamp brass for already-proven, mid-range loads.

For .223 Remington specifically, there's a chamber distinction that catches new reloaders off guard. The .223 Remington SAAMI specification and the 5.56x45mm NATO military specification are not the same thing. SAAMI maps the .223 Remington maximum at 55,000 psi; the 5.56 NATO specification runs at a higher pressure level under a different measurement convention. The headspace dimensions also differ slightly between the two chamber standards. A .223 Remington handload developed carefully in a .223 Remington chamber may run at higher pressure when fired in a rifle chambered in 5.56 NATO — not because you did anything wrong, but because the chamber geometry is different and the published data doesn't account for the switch. Know which chamber your barrel is cut to before you begin, and use manual data referenced to that specification.

One more caution that doesn't get enough attention: undercharging a rifle case is not automatically safer than overcharging it. With certain slow-burning powders, an insufficient charge can produce an abnormal pressure event — the burning dynamics are disrupted in a way that can spike pressure sharply rather than simply producing lower pressure. This is not a universal risk with all powders or all cartridges, but it is a documented phenomenon. The minimum charge in a published manual is a minimum for a reason. Don't go below it.

**The Chronograph's Real Job**

Marcus didn't know it at the time, but the most important thing on his bench that day wasn't the scale or the case trimmer or the careful primer seating. It was the box of electronics he'd almost left in the truck because the weather was cold and setting it up was a hassle.

A chronograph won't replace a reloading manual. It won't tell you peak chamber pressure. It won't verify that your components are within SAAMI specifications. What it does is give you a number that the brass cannot — an objective, early signal that the internal world of your cartridge is behaving differently than you planned.

For current ATF processing times, SAAMI pressure specifications, and other regulatory or technical standards not covered here, always verify directly with the issuing organization. Powder lots vary. Manuals are updated. Your rifle is not the test barrel.

The brass may look fine. Check the screen.
