The Brass Looked Fine. The Chronograph Knew Better.

Marcus had been reloading 9mm for about eight months when he settled into his routine at an outdoor range on a quiet Tuesday morning. Fifty rounds, a fresh notebook, and a load he had been slowly working up over three sessions. The brass looked good—no cratering, no flattened primers, no unusual marks around the case head. The pistol cycled cleanly. He'd been feeling confident.

What he didn't have that morning was a chronograph. He had one on order. It hadn't seemed urgent.

That is the exact moment most reloading mistakes are made—not in a flash of recklessness, but in a quiet stretch of confidence that isn't yet earned.

**The Instrument You Cannot Reload Without**

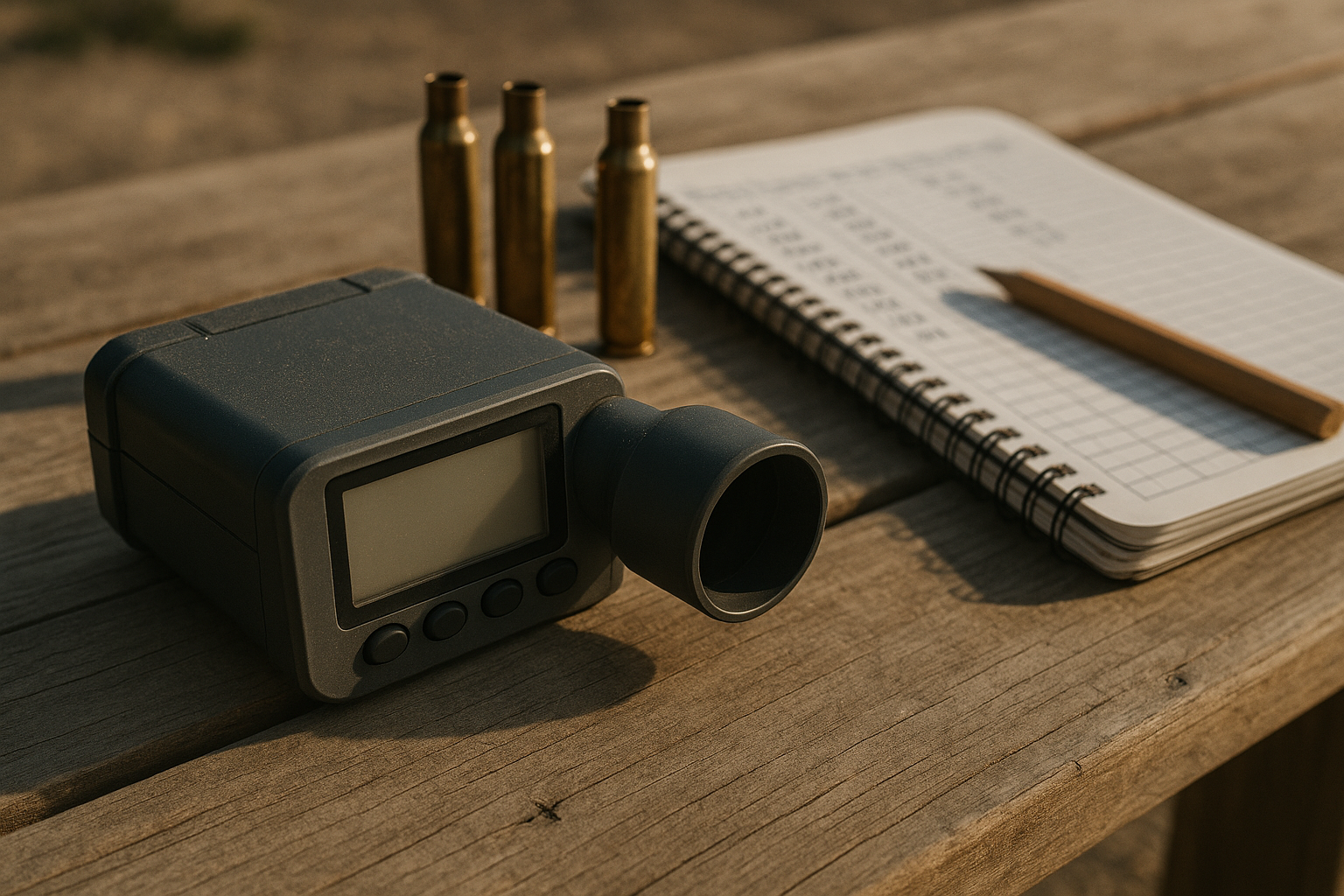

A chronograph does one thing: it measures how fast a bullet is moving as it leaves the barrel. Two optical or radar sensors separated by a fixed distance record the bullet's transit time, and the unit converts that to feet per second. Most units will also calculate your extreme spread (ES)—the difference between your highest and lowest velocity in a string—and your standard deviation (SD), a statistical measure of how tightly your shots cluster around the average.

Those numbers sound like benchrest nerd metrics. They are actually your pressure gauge.

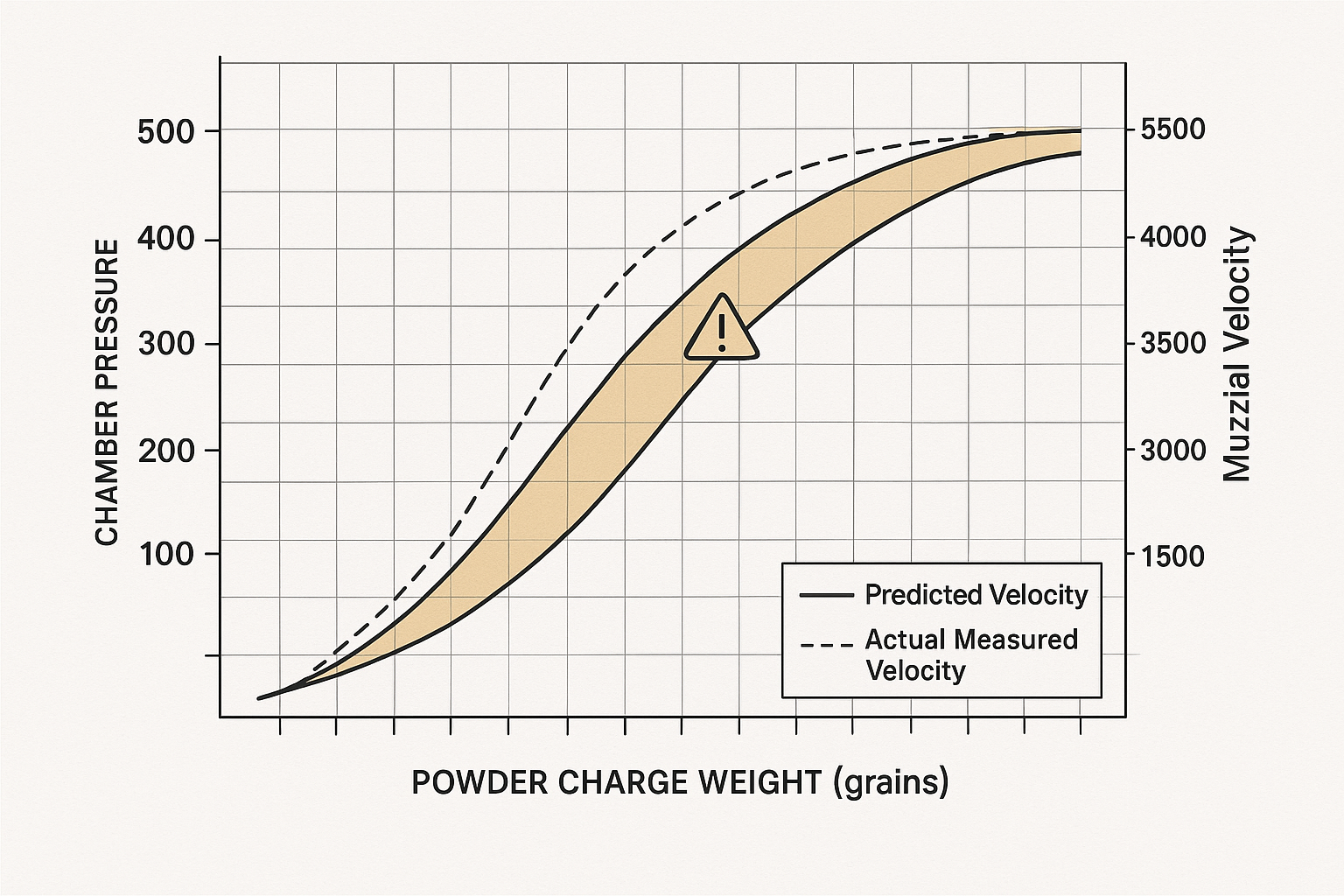

Here is the physics. Propellant gas pressure is what accelerates the bullet down the bore. More pressure, more velocity. Less pressure, less velocity. The relationship is not perfectly linear, but the principle holds across cartridges: a load running significantly faster than published data is almost certainly running above the pressure that published data was developed at. You cannot have the extra velocity for free. Energy has to come from somewhere, and in a firearm it comes from burning powder generating gas at high pressure inside a very small space.

The community consensus, echoed across reloading forums and confirmed by the underlying combustion physics, is that if your actual velocity exceeds the published maximum velocity for a given charge weight by roughly 100 fps or more, you are likely exceeding the published maximum pressure—even when the brass shows nothing unusual. Treat that figure as a flag to stop and investigate, not a hard threshold, and always verify against a current published reloading manual (Hornady, Lyman, Nosler, Hodgdon) for your specific bullet, powder, and primer combination. Forum heuristics are starting points. Your manual is the authority.

**Why Brass Lies to You**

The traditional checklist—flattened primers, cratered primers, ejector marks pressed into the case head, stiff bolt lift—has genuine value. But it is a late-stage indicator, not an early-warning system. By the time brass is showing those signs clearly, pressure has already been high. You have already been running the load hot. The question is only how many times you did it before noticing.

In 9mm, the problem is worse. Many popular pistol chambers, including a number of widely used striker-fired designs, have partially unsupported case heads—the brass at the base of the cartridge is not fully surrounded by steel at the moment of peak pressure. The cartridge expands to fill available space. The result is that factory 9mm brass routinely shows a slight bulge at the case web, a feature that looks exactly like what old-school guides call a pressure sign. Experienced reloaders on the Indiana Gun Owners forum have noted this consistently: new handloaders inspect fired factory cases and conclude something is wrong, when the geometry of the chamber produced that appearance at normal, safe pressures. SAAMI's maximum average pressure for 9mm Luger is 35,000 psi. If your chamber's geometry produces visible case expansion at 35,000 psi using factory ammo, then visual inspection of your handloads tells you almost nothing useful about whether you are at 35,000 psi or 39,000 psi.

The chronograph tells you. The brass does not.

**Reading the Spread**

Absolute velocity is one number to watch. Velocity spread is another, and it deserves more attention than it usually gets.

Extreme spread is simple arithmetic: subtract the slowest shot from the fastest shot in a string. If you fire ten rounds of 9mm and your velocities run from 1,101 fps to 1,187 fps, your ES is 86 fps. That is a wide spread, and it should prompt questions. Standard deviation quantifies the same phenomenon statistically—a low SD (single digits to low teens for a well-developed pistol load) means your shots are clustering tightly around the mean velocity. A high SD suggests inconsistent combustion.

Inconsistency at the powder-charge level can mean two different things, and both matter. A load sitting below the efficient burn threshold may produce erratic ignition—some rounds light off cleanly, others don't, and velocity jumps around. A load sitting near the top of the pressure curve can also produce erratic behavior as the combustion dynamics become more sensitive to small variations in charge weight, seating depth, or case volume. Wide ES at either end of the charge range is a signal to stop and evaluate before continuing to the next increment. Sudden tightening of ES as you step up charge weights can also indicate you are entering a more pressure-sensitive regime—not necessarily dangerous, but worth noting and proceeding carefully.

**The Load That Looked Fine**

A documented load workup for a .338 Edge—a large-capacity precision rifle cartridge—illustrates the stakes with unusual clarity. The reloader was working up a charge of Reloder 33, using ballistic software to predict expected velocities at each step. At 97 grains of powder, the software predicted approximately 2,735 fps. The rifle produced 2,869 fps. That is more than 130 fps above the software's estimate, with no visual pressure signs whatsoever—no sticky bolt, no flattened primer, no ejector mark. The brass looked fine. The rifle felt fine. And the reloader was already approaching the pressure ceiling, revealed only by the gap between predicted and actual velocity.

He stopped at 100 grains rather than proceeding to the planned 101-grain maximum. The chronograph was the reason. Without it, he would have had only brass and feel to guide him, and both were reporting no problem.

Adapt that story to your 9mm or .223 load workup and the lesson translates exactly. You fire a string at a charge weight three steps below maximum. The brass looks textbook. The velocity comes back 120 fps above what the manual lists for that charge weight. That gap is the story. It means your specific combination—your powder lot, your brass brand, your primer, your barrel length, your bullet's bearing surface—is producing more pressure than the test combination that generated the manual's data. Any one of those variables can shift pressure. Changing multiple components risks what experienced reloaders call stacking: each variable contributes a small pressure increase, and they compound rather than average out.

**First Steps That Are Actually Safe**

Safe load development is not complicated, but it requires patience and a chronograph before you fire the first test round.

Begin by establishing a baseline with factory ammunition. Run a box through your firearm while recording velocities with the chronograph. Note the ES and SD. Note primer condition, extraction effort, and ejection pattern. This gives you a reference: you now know what your specific firearm does with a load you know is within specification. Any handload that produces velocity or brass behavior substantially different from that baseline warrants attention.

For your actual workup, obtain a current printed reloading manual specific to your bullet weight, powder, and primer combination. The manual's starting load—not the maximum—is your first charge weight. Increment upward in steps of 0.3 to 0.5 grains for pistol cartridges, or 0.5 to 1.0 grains for rifle. Chrono every string. Compare every string's actual average velocity to the manual's listed velocity for that charge weight. If actual velocity significantly exceeds the manual's listed velocity at a given step, stop. Do not proceed to the next increment until you understand why the numbers diverged.

Record ES and SD for every string in your notebook. Inspect brass after every string, but treat what you see on the case as a secondary data point, not a safety gate. Visual signs confirm a problem that the chronograph should have flagged first. If you ever see clear pressure signs without the chronograph having warned you, the lesson is that you needed the chronograph earlier in the process, not that you can skip it going forward.

One more thing the brief research record flags and it is easy to overlook: too little powder in a rifle cartridge carries its own risk. An undercharge in a case-capacity cartridge can, under specific conditions, allow the bullet to partially seat into the rifling before pressure builds sufficiently, creating a dangerous obstruction scenario. The hazard runs in both directions. The chronograph catches velocity that is too high. It also catches velocity that is implausibly low for the charge weight you recorded in your notebook—which is how you catch a double-charge or a missed charge before it becomes a mechanical incident.

The instrument costs less than a box of premium factory ammunition. What it replaces is the assumption that things look fine—which, as Marcus eventually learned when his chronograph arrived and he re-ran that load, is not the same thing as things being fine.
